Food Grade Stainless Steel Z Type Bucket Elevator Easy Installation
Rice Milling Vertical Multi-outlets Z Pattern Bucket Elevator
Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain

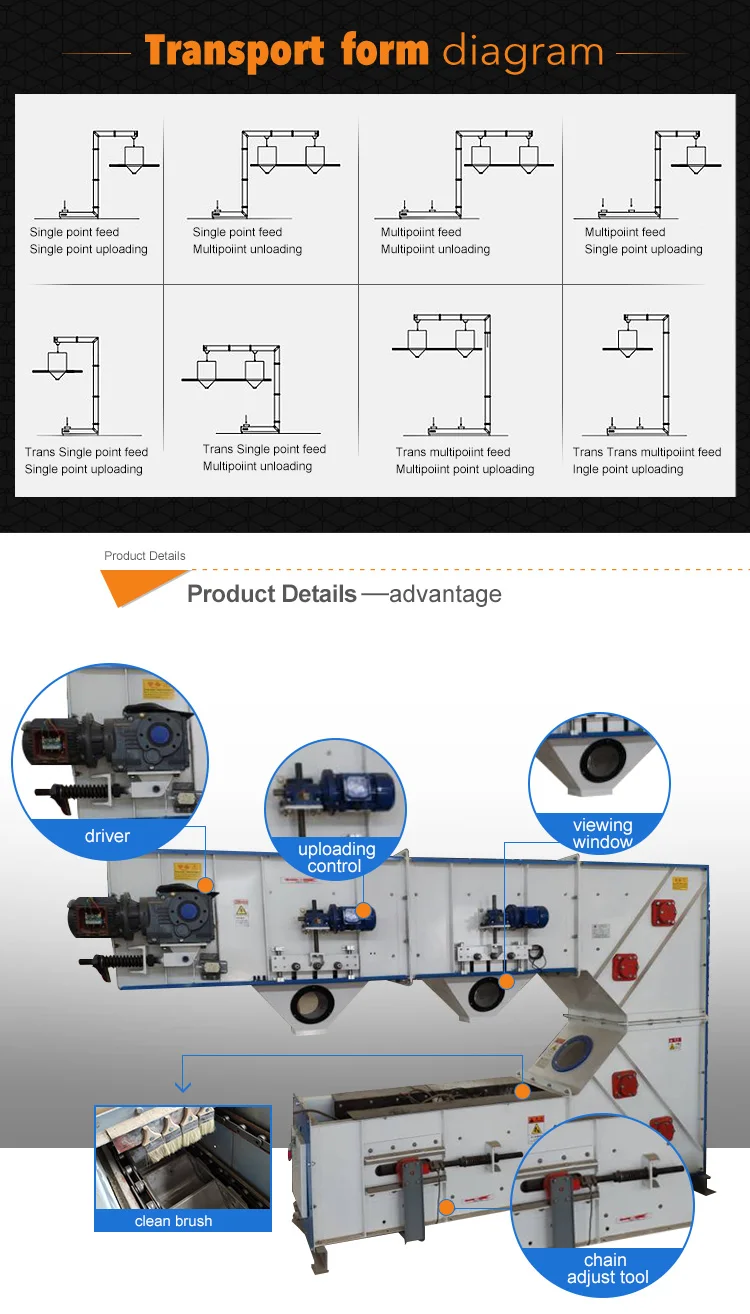

· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
bucket elevator calculations calculations
Continuous bucket elevator calculationss are used to handle powders, bulk solids or friable ,fragile materials because they minimize product damage or are used to handle light fluffy materials where aeration of the product must be avoided. Continuous bucket elevator calculationss have buckets spaced continuously and operate at slower speeds. The continuous bucket placement allows the force of gravity to discharge their load onto the inverted front of the proceeding bucket. The bucket then guides that material into the discharge throat on the descending side of the elevator.
Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator calculations, C type bucket elevator calculations etc. Selection of the proper type of bucket elevator calculations depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
| Sizing Table |
| | CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 |
| Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 |
| Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 |
| Distance | mm | 228.6 | 330 |
| Chain | QTY | -- | 2 |
| Pitch | mm | 38.1 | 66 |
| Single chain break loading(KN) minimum | 37.6 | 90 |
| Chain Wheel | Teeth QTY | -- | 26 | 22 |
| Pitch cercle diameter | mm | 316.09 | 463.76 |
| Bucket running speed | m/s | ≤0.3 | ≤0.25 |
| Transmission shaft revolution | r/min | ≤0.3 |
| Max elevating height | m | ≤45 |
| Max horizontal transport distance | m | ≤100 |
| Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 |
| Bucket Specification Size |
| Item | Width (mm) | Volume (L) | Size | CH3-10 Drawing |
| a | h | d(H12) | j |
|
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 |
| CH6 | 470 | 6 |
| CH10 | 870 | 10 |
| | CH15-35 Drawing |
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 |
|
| CH20 | 560 | 20 |
| CH25 | 690 | 25 |
| CH30 | 815 | 30 |
| CH35 | 940 | 35 |
